Nishore Oscilloscope,Rate Dual Channel Dual Channel Oscillometer Display Oscope Meter Oscope Meter Handheld Oscillometer With Save Handheld 120mhz 250msa/s 3.2inch Ips Display 2 Channel 3.2inch Dsfen

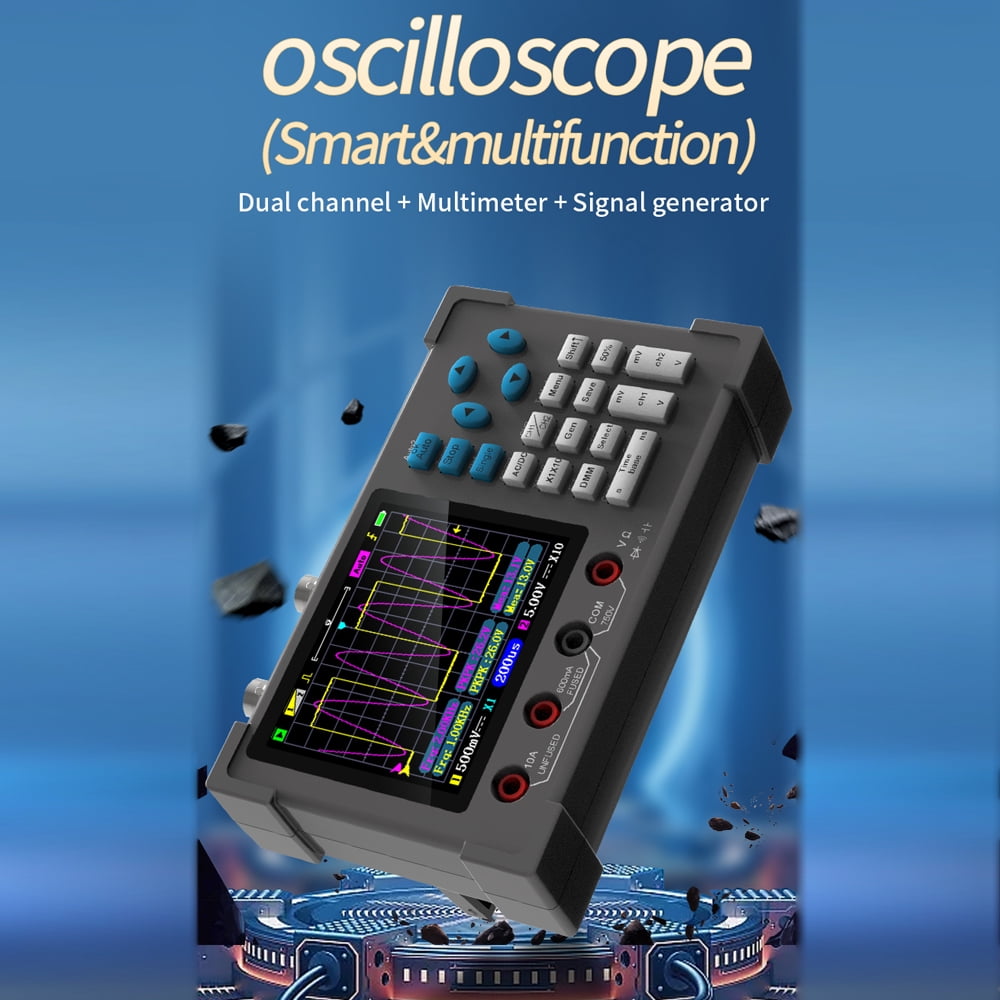

3in1 Oscilloscope Multimeter Signal Generator Machine 3.2inch IPS Display Oscope Meter Handheld Oscilloscope 120Mhz Bandwidth 250MSa/s Sampling Rate Dual Channel Oscillometer with Waveform Save and View Function for DIY and Electronic Test Built-in true RMS multimeter, that supports quick software calibration. With /ACvoltage, /ACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage /resistance/continuity, oscilloscope and multimeter functions can be used simultaneously (small window in upper right corner). Support for latching reference waveforms, statically displaying current waveform on screen, while dynamic waveforms are continue to update normally. And can be used for reference and comparison between multiple waveforms. This product ingeniously integrates digital oscilloscope, multimeter, and signal generator functions into one device. 3.2-inch clear-definition IPS display, high sensitivity full view display, channel 2 waveforms can be set to green/ cyan/purple. It can easily handle measurement in various fields, widely used in fields of testing and debugging of electronic circuits, troubleshooting and repairing of elect Use an isolation transformer and isolation optocoupler chip to isolate multimeter from oscilloscope, so you don't have to worry about common ground wiring. (When measuring high voltage, multimeter, and oscilloscope cannot be used at same time). Dual channel oscilloscope function, with 120MHz bandwidth and 250MSa/s sampling rate. With perfect trigger function (automatic, single, normal). Supports sensitivity and time base adjustment, automatic mode adjustment, 2-channel waveform analysis, cursor measurement, reference waveforms, FFT spectrum, reference waveforms, waveform save and view. Support one-button automatic and fully-automatic mode, no complicated operation, you can quickly detect and display waveform. In fully automatic mode, no keystrokes are required, and continuous automation is performed. Built-in waveform signal generator, it can output sinewave, squarewave, trianglewave, and so on. voltage amplitude is 2.5V, frequency is adjustable from 0-2Mhz, and squarewave duty cycle is adjustable from 1% to 99%. FFT can only display spectrograms, frequency measurement is not supported. With dual-channel mode, which can measure and display two signal waveforms at same time for waveform comparison and analysis. oscilloscope will automatically detect signal and adjusts ranges. Support manual adjustment of waveform vertically and horizontally. vertical sensitivity indicates voltage in vertical direction, and it is adjusted by mV and V buttons to adapt to different voltages. time base represents time in horizontal direction. It is adjusted by S and NS buttons to accommodate different frequencies. In stop mode, user can move waveform left and right. mode is an imaging formed by combining waveforms of two channels and is commonly used to display phase difference or frequency relationship between two signals. Supports X cursor and Y cursor measurement. horizontal cursor can be used, for example, to measure interval time between two pulses. vertical cursor can be used to measure voltage and voltage difference at any two locations. real-time sampling rate is 250MSa/s, dual-channel mode bandwidth is halved to 60Mhz. Save screen waveform with one click, enter picture browsing page, you can click thumbnail for full-screen observation and also can delete unwanted waveform chart at will.<br><br>Multimeter:<br>DCvoltage: 600mV/6.00V/60.0V/600V/750V, ±(0.5%+3)<br>AC voltage: 600mV/6.00V/60.0V/600V, ±(1%+3)<br>current: 600mA/10A, ±(2%+5)<br>AC current: 600mA/10A, ±(3%+5)<br>current note: 600mA hole with 1A fuse, 10A hole without fuse<br>Resistance: 600.0±(1.5%+3); 6.000k/60.00k/600.0k±(1%+3); 6.000, ±(1.5%+5); 60.00, ±(3%+3)<br>Capacitance:

• Dual Channel: With dual-channel mode, which can measure and display two signal waveforms at the same time for waveform comparison and analysis.
• 3In1 Design with IPS Display: This product ingeniously integrates digital oscilloscope, multimeter, and signal generator functions into one device. 3.2-inch clear-definition IPS display, high sensitivity full view display, channel 2 waveforms can be set to green/ cyan/purple.
• High-precise Multimeter: Built-in true RMS multimeter, that supports quick software calibration. With DC/ACvoltage, DC/ACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage /resistance/continuity, the oscilloscope and multimeter functions can be used simultaneously (small window in the upper right corner).
• Wide Applications: It can easily handle measurement in various fields, widely used in the fields of testing and debugging of electronic circuits, troubleshooting and repairing of elect
• Safer Design: Use an isolation transformer and isolation optocoupler chip to isolate the multimeter from the oscilloscope, so you don't have to worry about common ground wiring. (When measuring high voltage, the multimeter, and oscilloscope cannot be used at the same time).
